Nome da marca: CONTRASTECH
Sensor de imagem: Outras Séries SONY
Megapixels efetivos: Cerca de 1.3MP
Origem: CN (Origem)
Idioma preferencial: english
Químico Hign-em causa: Nenhum
Expandir microfone: Não
Processador principal (suporte HD máximo): GP2
Microfone incorporado: Nenhum
Certificado: CE
Categoria: categoria: Câmeras de vídeo de esportes e ação
Embalagem: Sim
Aplicação: Profissional
Função adicional: Foto noturna
Sensor type: Cooled MCT
Spectral range: 1500-5200nm
Pixel Size (μm): 15 x 15
Frame Rate: 1-117Hz
F/#: F2.0/F4.0 (Customizable)
Interface: GigE/Cameralink
Lens Mount: M34
Power Supply: DC24V

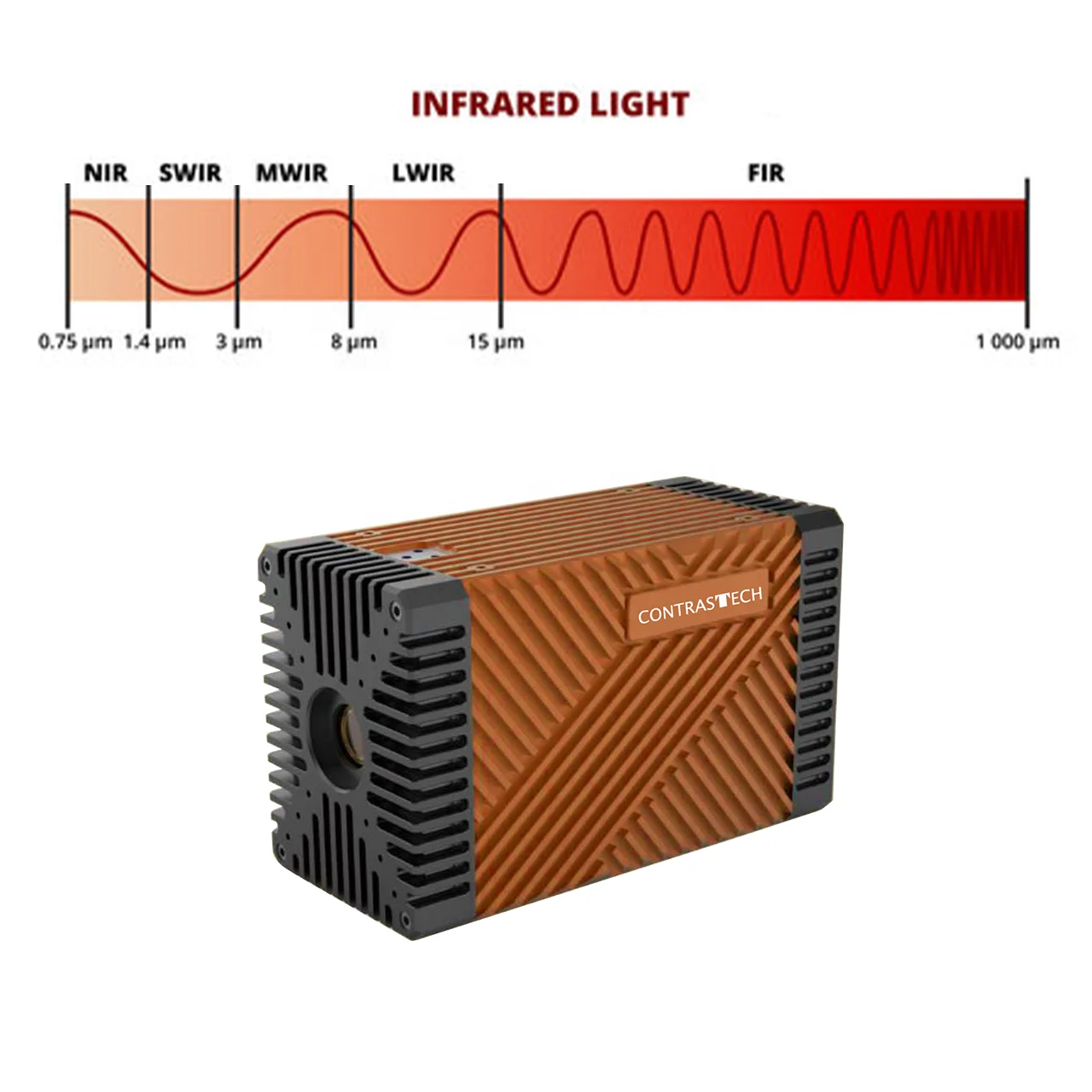

Contrastech MWIR camera is embedded with advanced image processing algorithms and comes
with powerful application software and a comprehensive SDK, making it easy for users to further
integrate and develop. Excellent structural design and highquality device selection make the overall
performance more outstanding and suitable for various harsh environments.
Main Features
● 1500 to 5200 nm Spectrum
● High strength industrial structure design
● Embedded on-board image preprocessing
● Low cost high precision detector
● GigE and Camera Link data interface
Camera | Venus-MW640-3748GS | Venus-MW640-1552GS |
Sensor type | Cooled MCT | Cooled MCT |
Resolution | 640 × 512 | 640 × 512 |
Pixel spacing | 15μm × 15μm | 15μm × 15μm |
Spectral range | 3.7 μm-4.8 μm | 1.5μm-5.2 μm |
NETO | ≤ 18 mk@20° C | ≤ 18 mk@20° C |
Frame rate | 1-117Hz | 1-117Hz |
Cooling | Stirling cooling ≤ 7 min | Stirling cooling ≤ 7 min |
F/# | F2.0/F4.0（Customizable） | F2.0/F4.0（Customizable） |
Exposure Time | 1μs-100ms | 1μs-100ms |
Digital image output | Cameralink/Cameralink ＆ GigE | Cameralink/Cameralink ＆ GigE |
Analog video output | Standard PAL analog video signals | Standard PAL analog video signals |
Operating temperature | -30℃ ~+50℃ | -30℃ ~+50℃ |
